Description
Ubiquiti UniFi USW-Pro-Max-48-PoE delivers high-density PoE switching for enterprise networks with a massive 720W PoE budget and versatile multi-speed copper.
Connect and power phones, APs, cameras, and IoT across 48 RJ45 ports: 32x 1GbE and 16x 2.5GbE, with support for up to PoE++ (per-port). For uplinks and aggregation, it includes 4x 10G SFP+ to keep distribution links fast and uncluttered.
Built for rack deployments, this 1U switch integrates a 1.3" touchscreen for quick status checks and supports USP RPS DC input for DC power backup. With 224 Gbps switching capacity and centralized UniFi management (UniFi Network 8.0.24+), it’s ideal for campuses, offices, and surveillance-heavy installations where power and uplink speed matter.
UBIQUITI UniFi Layer 3 switch Pro Max 48 PoE, USW-Pro-Max-48-PoE-EU; 224 Gbps; (32) 1 GbE RJ45 (24 PoE+; 8 PoE++)./(16) 2.5 GbE RJ45 : (8) PoE+ / (8) PoE++ / (4) 10G SFP+; 167 Mpps; MAC 32000; 1U.

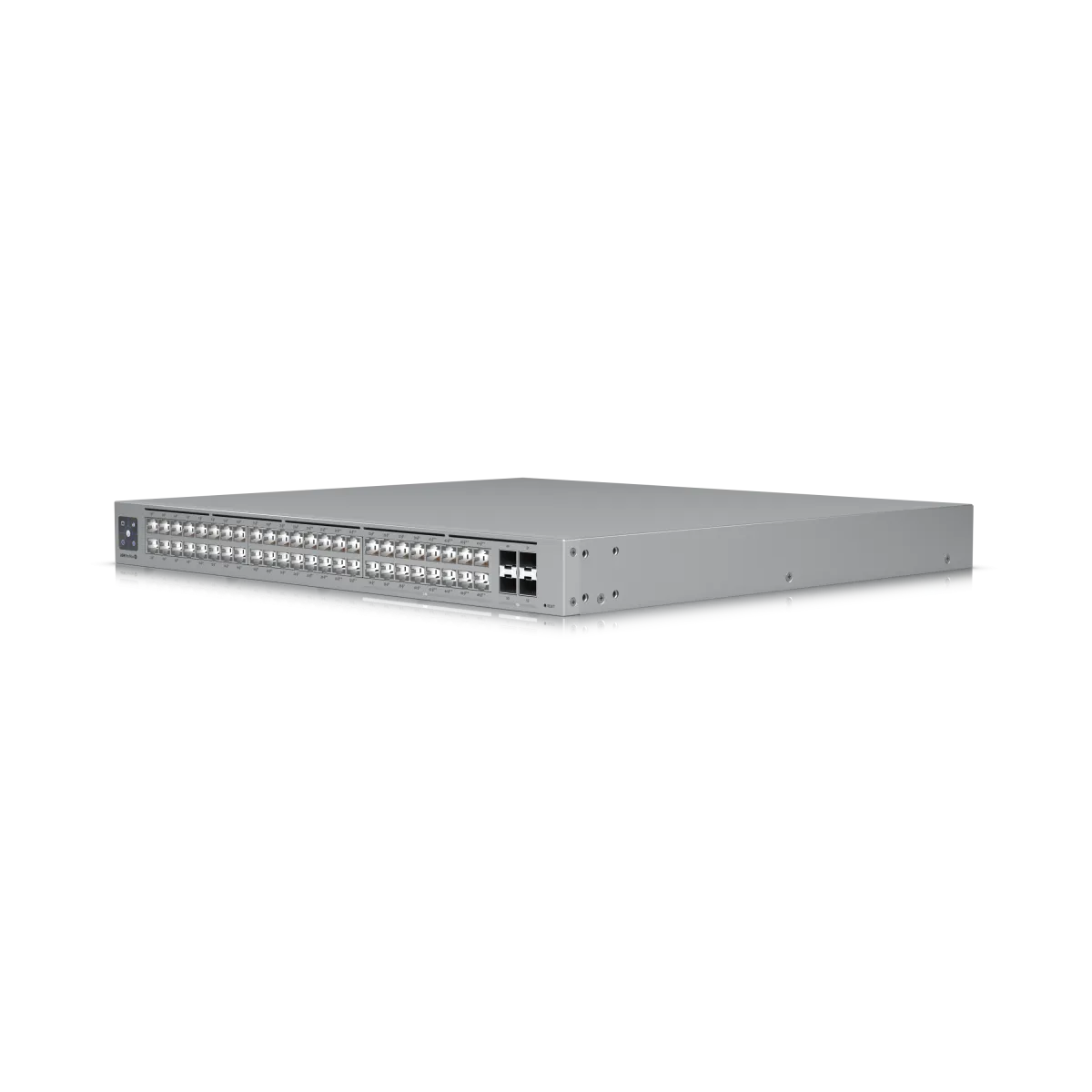

UniFi Switch Pro Max 48 PoE
Ubiquiti UniFi USW-Pro-Max-48-PoE delivers high-density PoE switching for enterprise networks with a massive 720W PoE budget and versatile multi-speed copper.
Specifications
- Dimensions
- 442.4 x 400 x 44 mm
- Weight
- 6.2 kg (without mounting brackets); 6.3 kg (with mounting brackets)
- Display
- 1.3" touchscreen
