Description

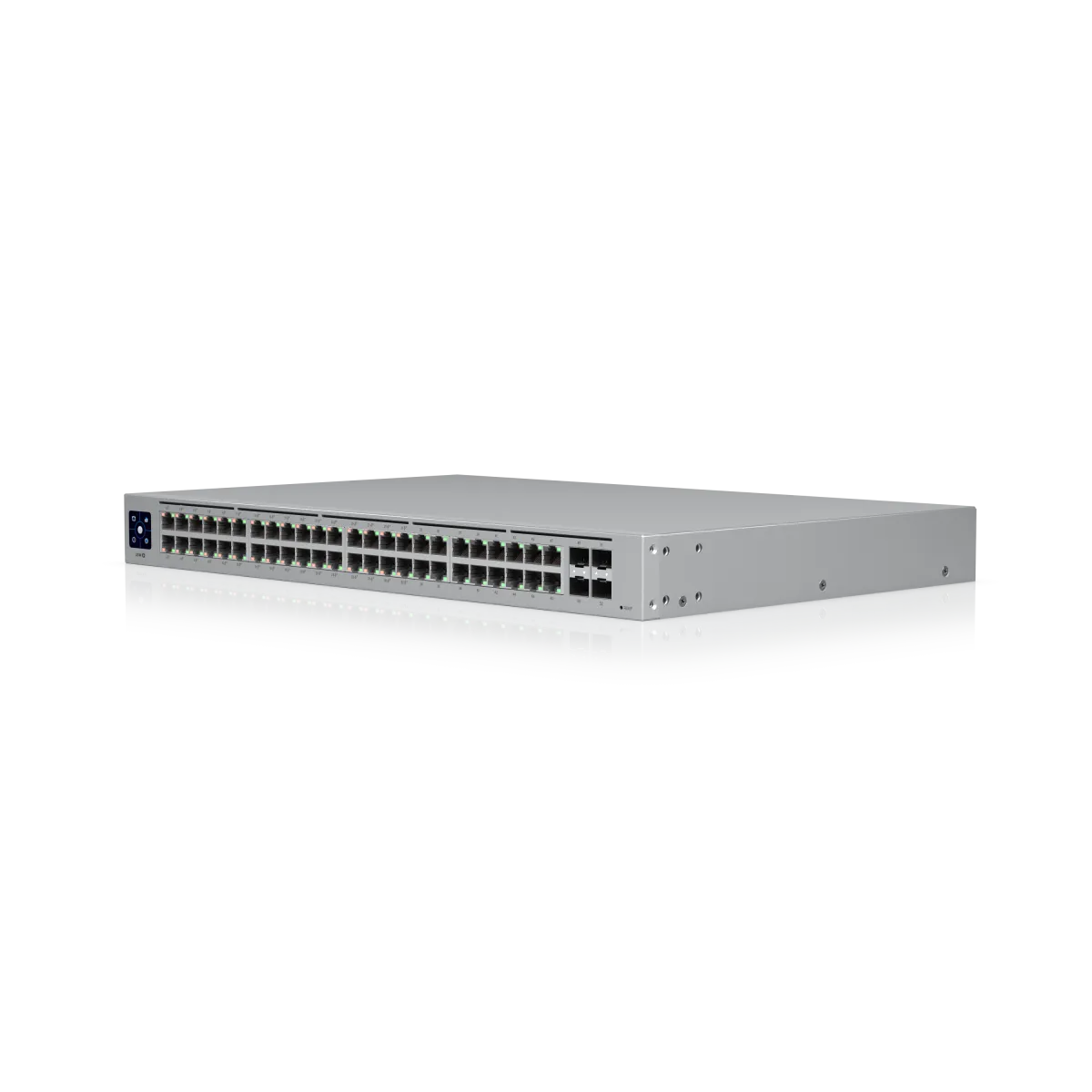

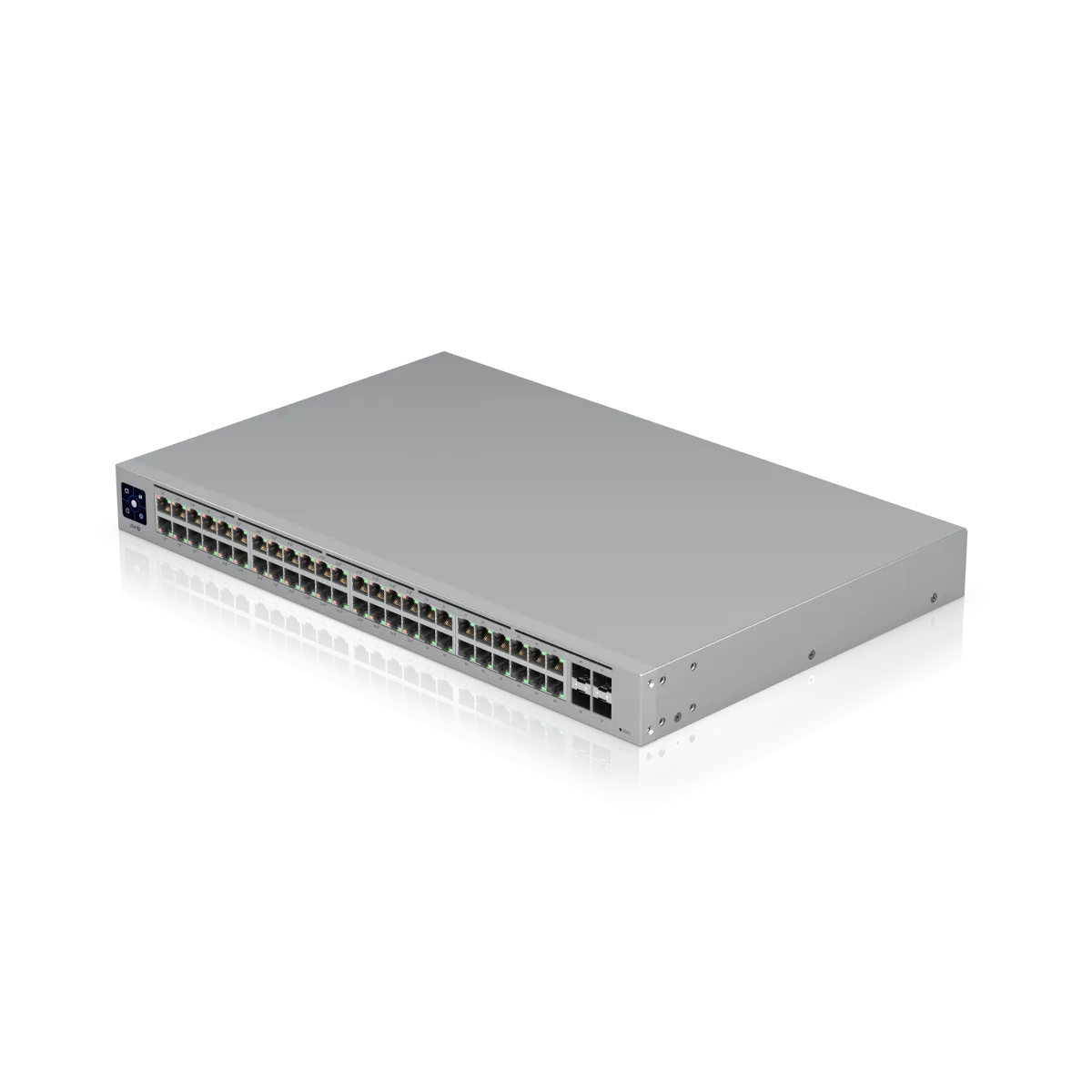

Ubiquiti UniFi USW-48-POE delivers reliable 1G switching with integrated power for large deployments, combining 48x RJ45, 32x PoE+, and a 195W PoE budget in a 1U rack design.

Connect edge devices at scale with 4x 1G SFP uplinks and performance rated for 104 Gbps switching capacity, 52 Gbps non-blocking throughput, and up to 77 Mpps forwarding. The steel enclosure and internal 240W power supply support dependable operation in enterprise wiring closets.

Manage it centrally through UniFi Network (requires v7.2.94+) and simplify segmentation with support for up to 1,000 VLANs. Ideal for powering UniFi access points, IP phones, and cameras while keeping switching and PoE in a single, clean rack-mounted footprint.

B2B Marketplace > Network Switch > UBIQUITI > USW-48-POE-EU

USW-48-POE-EU

UBIQUITI UniFi Switch Standard 48 PoE

Warranty: 12 month(s)

View logistic information

Product Information

General Information
	UBIQUITI UniFi Layer 2 switch Standard 48 PoE, USW-48-PoE-EU; 104 Gbps; PoE (48): (32) PoE+ / (16) PoE, (48) 1 GbE RJ45, (4) 1G SFP; 77 Mpps; MAC 16000; 1U.

Technical Specification

Networking Specifications
Number of Ports:	48 x 10Base-T/100Base-TX/1000Base-T (Ethernet/Fast Ethernet/Gigabit Ethernet) 4 x (1 Gbps)
Switching Layers:	Layer 2
Status Indicator:	Link Speed PoE
Networking Compliant Standards:	IEEE 802.3af IEEE 802.3at
Networking Features:	Power over Ethernet plus (PoE+)
Device Location:	Plug-in Module
Standard Rack Height:	1U
Certifications:	CE, FCC, IC
Interface Provided
LAN:	48 (RJ-45)
SFP:	4
Power
Power over Ethernet/Power Adapter:	Internal AC 100-240 V, 50/60 Hz
Maximum Output Power:	240 W
Power Consumption Operational:	45 W
Dimensions & Weight Device
Depth (mm):	442.4 mm
Height (mm):	43.7 mm
Width (mm):	285 mm
Nominal Weight:	4.52 kg
External Color:	Gray
Environment
Maximum Operating Ambient Temperature:	40 °C
Maximum Operating Humidity:	90 %
Minimum Operating Ambient Temperature:	-5 °C
Minimum Operating Humidity:	10 %

Warranty and Logistic

Warranty
Warranty Products Returnable:	Yes
Warranty Term (month):	12 month(s)
Warranty Validation Criteria:	Serial Number
Warranty Term Notes:	24 months - for EU
Logistic
Pack Length (mm):	521 mm
Pack Width (mm):	123 mm
Pack Height (mm):	435 mm
Pack Weight Brutto (kg):	5.5764 kg
Pack Weight Netto (kg):	0.03 kg
Pieces in pack:	1
Box Length (mm):	547 mm
Box Width (mm):	262 mm
Box Height (mm):	445 mm
Box Weight Brutto (kg):	12.6934 kg
Retail Packaging Net Weight Carton:	0.01 kg
Retail Packaging Net Weight Plastic:	0.01 kg
Packs in Box:	2
Package Type:	Box
EAN Code:	817882029094

SKU USW-48-POE-EU

UniFi Switch 48 PoE

Name: UniFi Switch 48 PoE
Brand: Ubiquiti
SKU: USW-48-POE-EU
Price: 636 EUR
Availability: PreOrder

1.3" touchscreenDisplayRack mount (1U)Form Factor104 GbpsSwitching Capacity

Ubiquiti UniFi USW-48-POE delivers reliable 1G switching with integrated power for large deployments, combining 48x RJ45, 32x PoE+, and a 195W PoE budget in a 1U rack design.

€636.00

Buying for your company?Request a formal quote — volume pricing and invoice, reply within one business day.

Order

Specifications

Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight: Without mounting brackets: 4.5 kg (10 lb); With mounting brackets: 4.6 kg (10.2 lb)
Display: 1.3" touchscreen
