Description

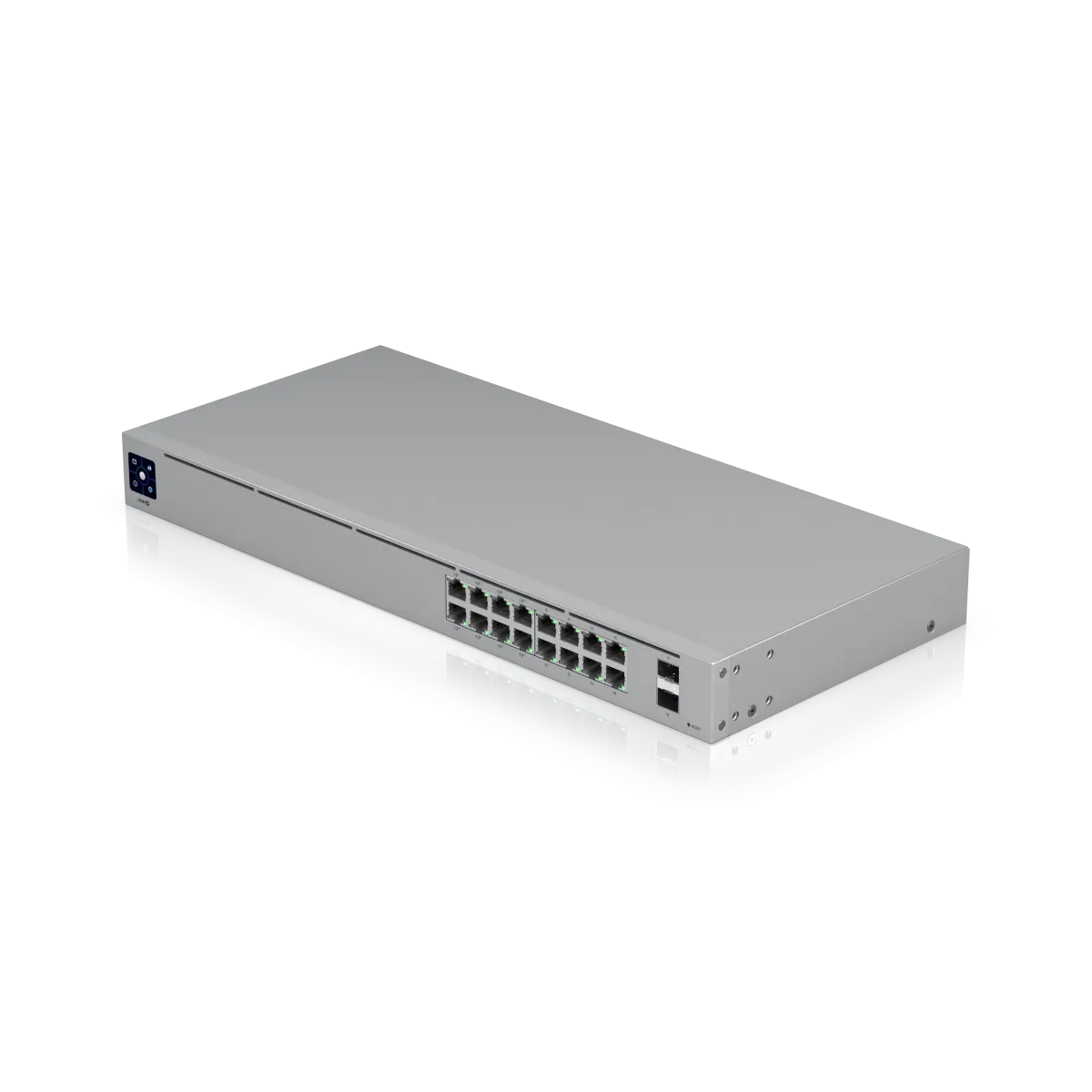

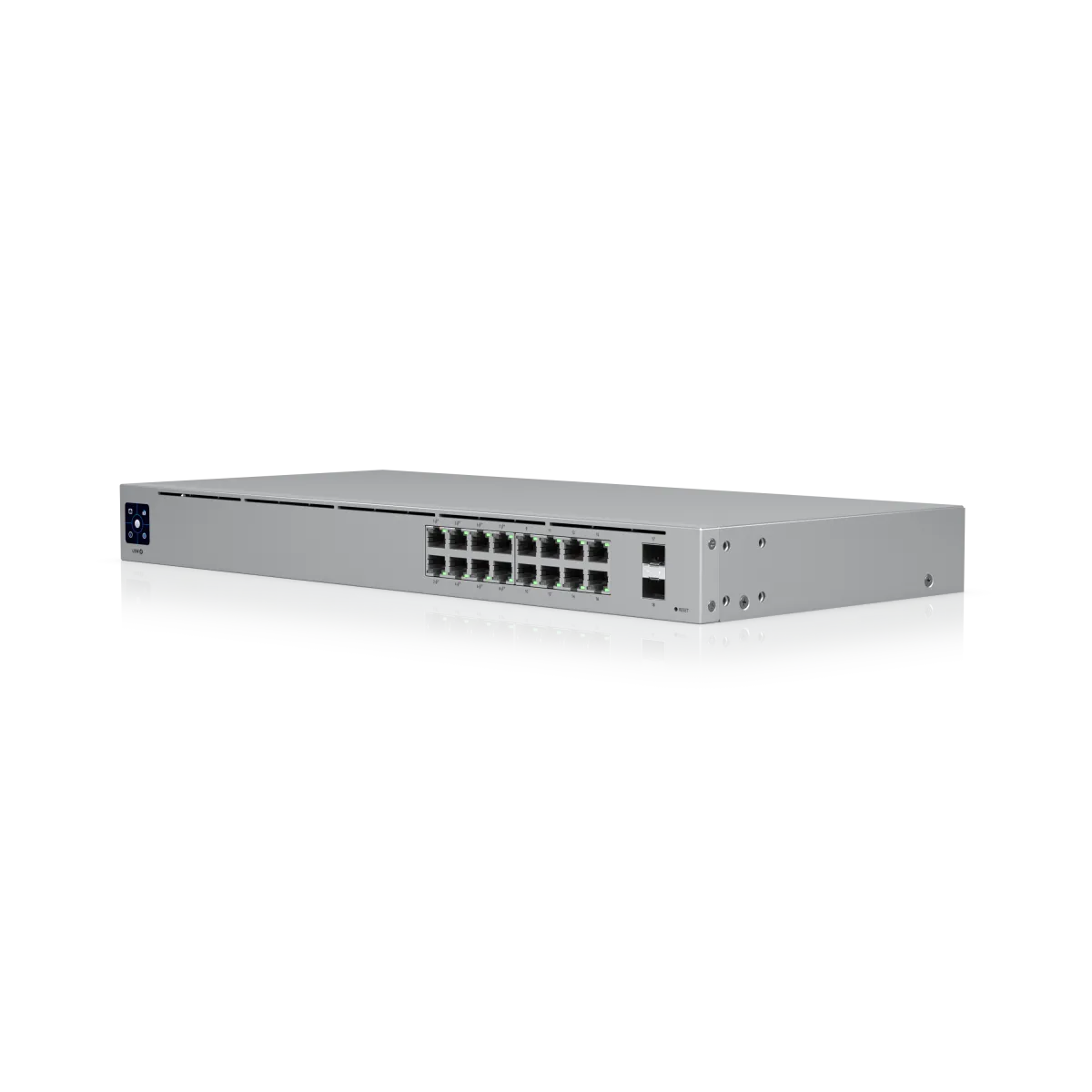

Ubiquiti UniFi USW-16-POE is a rack-mountable Layer 2 switch built for UniFi networks that need reliable PoE+ power and clean, centralized management.

Connect edge devices with 16x 1GbE RJ45 ports, including 8x PoE+, and uplink to your core via 2x 1G SFP. With a total PoE budget of 42W, it’s a practical choice for powering access points, VoIP phones, and compact cameras without separate injectors.

Designed for predictable performance, it delivers up to 36 Gbps switching capacity and 18 Gbps non-blocking throughput, with a 1U rack form factor and an integrated 1.3" touchscreen for quick status checks. Ideal for SMB racks, retail sites, and branch offices that want UniFi visibility, VLAN segmentation, and neat PoE distribution.

B2B Marketplace > Network Switch > UBIQUITI > USW-16-POE-EU

USW-16-POE-EU

UBIQUITI UniFi Switch Standard 16 PoE

Warranty: 12 month(s)

View logistic information

Product Information

General Information
	UBIQUITI UniFi Layer 2 switch Standard 16 PoE, USW-16-PoE-EU; 36 Gbps; (8) 1 GbE, PoE+ RJ45 , (8) 1 GbE RJ45, (2) 1G SFP; 27 Mpps; MAC 8000; 1U.

Technical Specification

Networking Specifications
Number of Ports:	16 x 10Base-T/100Base-TX/1000Base-T (Ethernet/Fast Ethernet/Gigabit Ethernet) 2 x Fibre Channel (1 Gbps)
Status Indicator:	Link Speed PoE
Networking Compliant Standards:	IEEE 802.1X IEEE 802.3af IEEE 802.3at
Networking Features:	Jumbo Frames Support MDI/MDI-X switch Switching Radius Authenticated Device Access 8 Ports PoE
Mounting Capability:	Rackmount
Standard Rack Height:	1U
Certifications:	CE, FCC, IC
Interface Provided
LAN:	16 (RJ-45)
SFP:	2
Power
Power Supply:	Internal AC 100-240 V, 50/60 Hz
Maximum Output Power:	60 W
Dimensions & Weight Device
Depth (mm):	442.4 mm
Height (mm):	43.7 mm
Width (mm):	200 mm
Nominal Weight:	2.8 kg
External Color:	Gray
Environment
Maximum Operating Ambient Temperature:	40 °C
Maximum Operating Humidity:	90 %
Minimum Operating Ambient Temperature:	-5 °C
Minimum Operating Humidity:	10 %

Warranty and Logistic

Warranty
Warranty Products Returnable:	Yes
Warranty Term (month):	12 month(s)
Warranty Validation Criteria:	Serial Number
Warranty Term Notes:	24 months - for EU
Logistic
Pack Length (mm):	521 mm
Pack Width (mm):	123 mm
Pack Height (mm):	313 mm
Pack Weight Brutto (kg):	3.6305 kg
Pack Weight Netto (kg):	2.6 kg
Pieces in pack:	1
Box Length (mm):	547 mm
Box Width (mm):	262 mm
Box Height (mm):	348 mm
Box Weight Brutto (kg):	8.271 kg
Retail Packaging Net Weight Carton:	2.9 kg
Retail Packaging Net Weight Plastic:	2.9 kg
Packs in Box:	2
Package Type:	Box
EAN Code:	817882028547

SKU USW-16-POE-EU

UniFi Switch 16 PoE

Name: UniFi Switch 16 PoE
Brand: Ubiquiti
SKU: USW-16-POE-EU
Price: 340.8 EUR
Availability: InStock

1.3" touchscreenDisplayRack mount (1U)Form Factor36 GbpsSwitching Capacity

Ubiquiti UniFi USW-16-POE is a rack-mountable Layer 2 switch built for UniFi networks that need reliable PoE+ power and clean, centralized management.

€340.80

Specifications

Dimensions: 442 x 200 x 44 mm
Weight: 2.8 kg (without mounting brackets); 2.9 kg (with mounting brackets)
Display: 1.3" touchscreen
