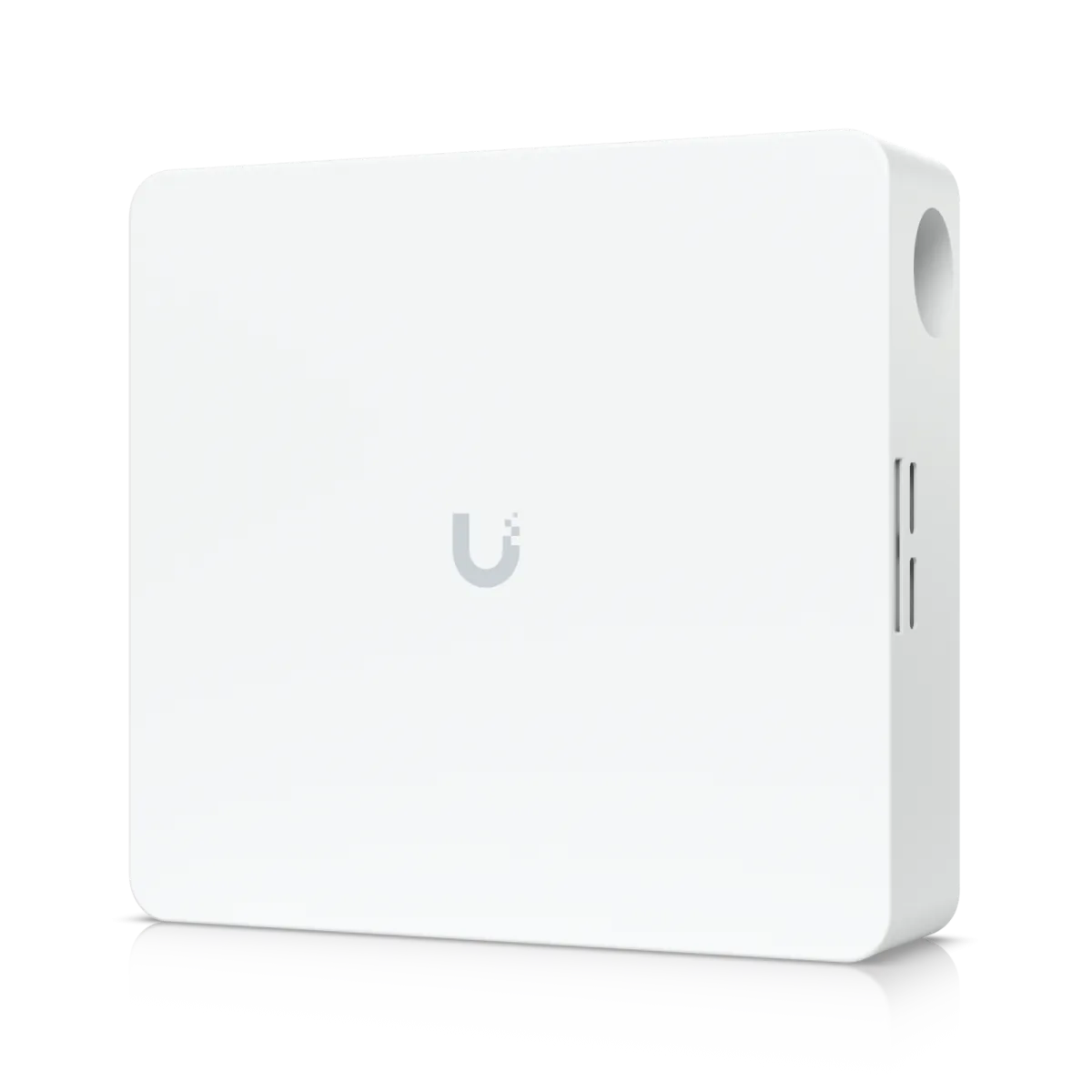

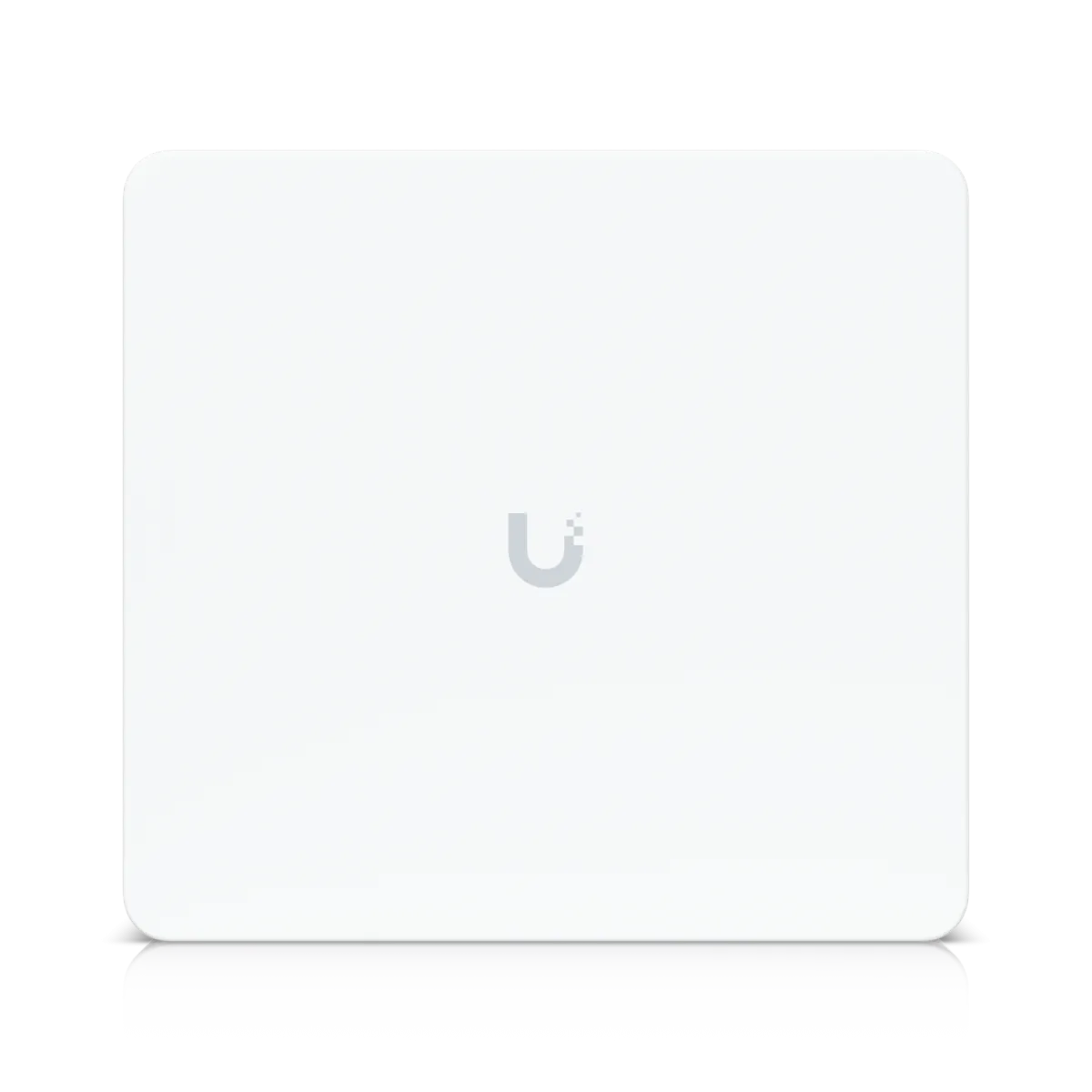

Consolidate enterprise door control with the UniFi EAH-8, an access hub for 8 doors that combines power delivery, networking, and secure I/O in a wall-mount steel enclosure.

EAH-8 supports up to 10,000 users and provides 10x 10/100/1000 Base-T for upstream and peripheral connectivity. 8x PoE+ outputs (50V DC) deliver 30W/port with a 60W aggregated budget to power readers and auxiliary devices. An internal AC/DC power supply (100–240V AC) and dedicated 32–48V DC lead-acid battery input help maintain operation during outages.

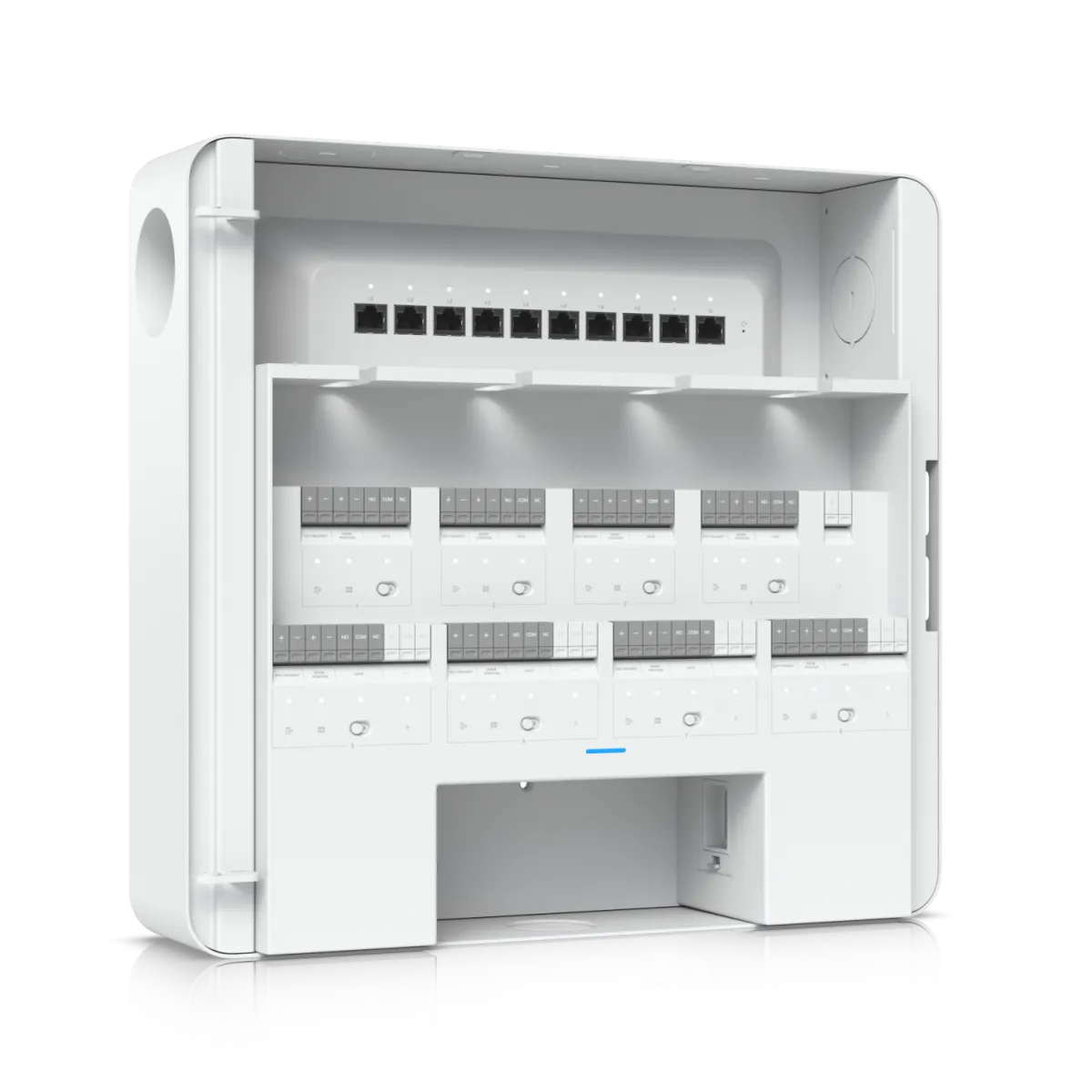

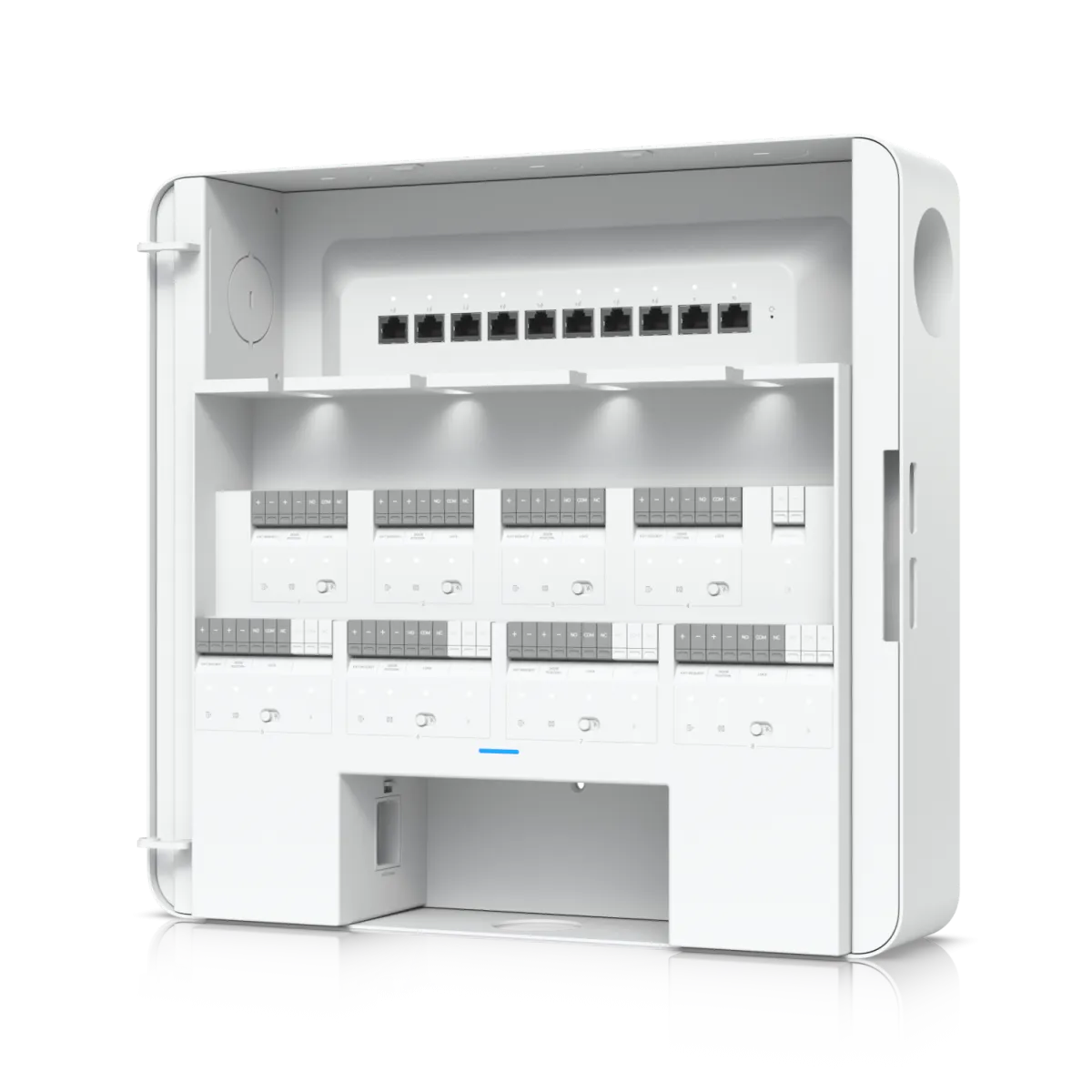

Designed for secure installations, it offers 8 lock terminals (12V or Dry), 4 AUX relays, 16 additional inputs, and dedicated REX, door-position, and emergency inputs. UL 294 Level I compliant and indoor-rated (0–40°C, 5–95% RH), the EAH-8 is managed centrally via UniFi Access for streamlined provisioning and monitoring—ideal for multi-door campuses and corporate facilities standardizing on UniFi.
